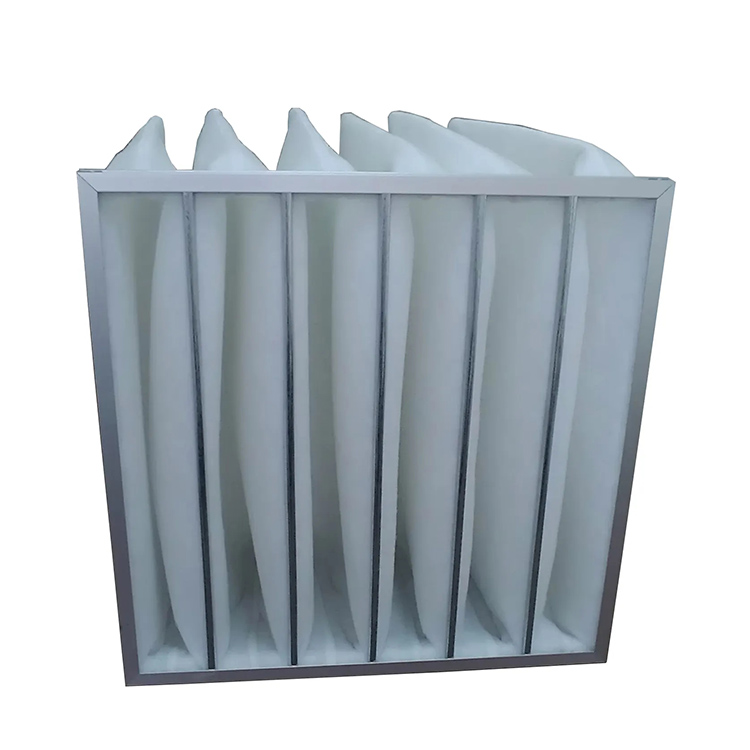

Bag-type primary filter

G3/G4 Primary Pocket Filters

Features

●Adopts reusable times

●Responding to small resistance, air

●Widely used in air conditioning system of intermediate filtration

Materials and operating conditions

●External frane：Aluminum alloy steel or frame

●Filter material: new composite nonwoven fabric

●Liao color: Green white
●Gasket：EVA

●Use the highest temperature, humidity：80℃、80%

Standard specification

model	Outside Dimensions (mm)	Rated air flow (m3/h)	Initial resistance(Pa)	Efficiency (class)	Liao color	pockets
CJ-S10-B1	495×295×500mm 20″×12″×20″	1500m3/h	35~45Pa	35-45% G4	绿白棉	5
CJ-S10-B2	495×495×500mm 20″×20″×20″	2500m³/h				5
CJ-S10-B3	595×295×500mm 24″×12″×20″	2000m³/h				6
CJ-S10-B4	595×495×500mm 24″×20″×20″	3200m³/h				6
CJ-S10-B5	595×595×500mm 24″×24″×20″	3800m³/h				8
CJ-S10-B6	495×295×600mm 20″×12″×24″	1800m3/h				5
CJ-S10-B7	495×495×600mm 20″×20″×24″	3200m³/h				5
CJ-S10-B8	595×295×600mm 24″×12″×24″	2500m³/h				6
CJ-S10-B9	595×495×600mm 24″×20″×24″	4000m³/h				6
CJ-S10-B10	595×595×600mm 24″×24″×24″	4500m³/h				8
