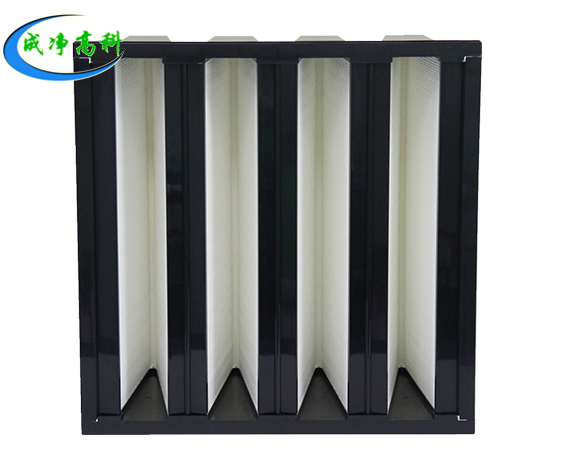

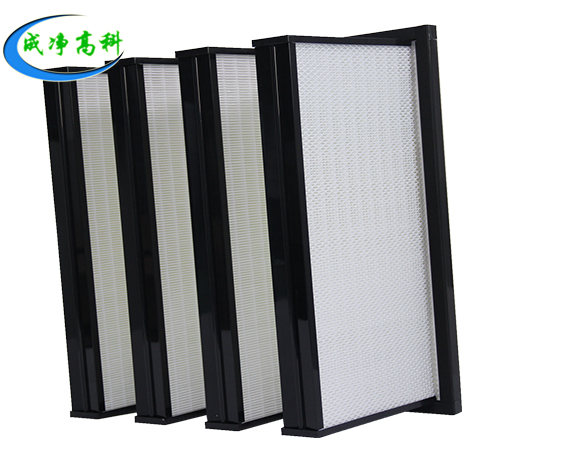

W type and efficient air filter

W type and efficient air filter

Features

●Long service life

●Large volume, low resistance and large amount of dust

●For large volume air conditioning and ventilation system of the intermediate filtration

Materials and operating conditions

●External frane：Plastic box

●Space: glue

●Sealant：Gel-glue

●Filter media：Glass fiber filter

●Use the highest temperature, humidity：80℃、80%

Standard specification

model	Outside dimensions (mm)	Rated air flow (m3/h)	Imitial resistance(Pa)	Efficiency (%)	Filter materials
CJ-H4-W1	287×287×292	900	≤90	F8	Glass fiber
CJ-H4-W2	490×287×292	1300	≤90	F8
CJ-H4-W3	490×490×292	2200	≤90	F8
CJ-H4-W4	592×490×292	2200	≤90	F8
CJ-H4-W5	592×490×292	3000	≤90	F8
CJ-H4-W6	592×287×292	1800	≤90	F8
CJ-H4-W7	592×592×292	2800	≤90	F8
CJ-H4-W8	592×592×292	3800	≤90	F8

Standard specification

model	Outside dimensions (mm)	Rated air flow (m3/h)	Imitial resistance(Pa)	Efficiency (%)	Filter materials
CJ-H4-W9	287×287×292	800	≤95	F9	Glass fiber
CJ-H4-W10	490×287×292	1200	≤95	F9
CJ-H4-W11	490×490×292	2000	≤95	F9
CJ-H4-W12	592×490×292	2000	≤95	F9
CJ-H4-W13	592×490×292	2700	≤95	F9
CJ-H4-W14	592×287×292	1600	≤95	F9
CJ-H4-W15	592×592×292	2400	≤95	F9
CJ-H4-W16	592×592×292	3200	≤95	F9

According to user requirements to customize different specifications and types of filters
